Surge Protection Device
SKU
CUSPSPD
Category: Surge Protectors
This Product is Sold By
PRODUCT SUMMARY:

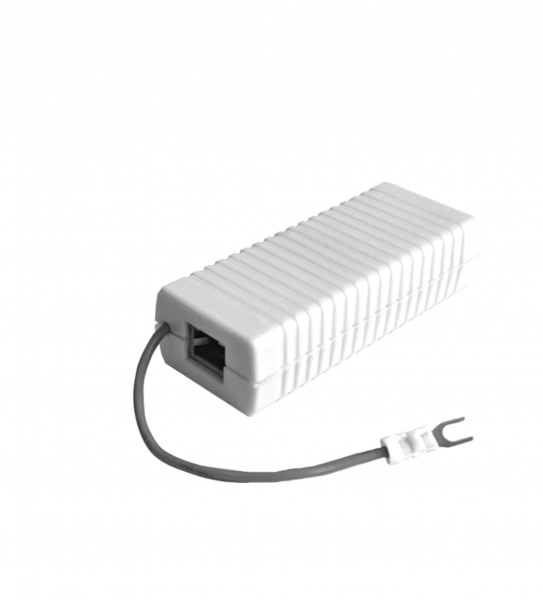

The Lotus Surge Protection Device (SPD), model CB-L-001SPD, for sale in Sri Lanka by Cubicoan, is designed to safeguard Gigabit PoE and non-PoE networks with safe, durable, and efficient power transmission. It features RJ-45 connectivity and a compact low-profile design, complying with EN/IEC 60950-1 standards. Electrically, it supports a maximum continuous DC voltage of 6V and handles a maximum discharge current of 5kA (8/20µs), with a rapid response time of less than 5ns. This SPD is suitable for Gigabit Ethernet/PoE networks, telecommunications base stations, and data centers.Features
- RJ-45 connectivity.
- Low profile.
- Easy connection / Documentation.
Applications
- Gigabit etherenet / POE networks
- Telecommunication base stations
- WISP/ISP
- IT & Data Centers
- Point to point links
- Control lines and sense loops
GENERAL SPECIFICATIONS:
| product information |
|
| Dimensions (H x W x L, mm) | 24mm x 38mm x 91mm |
| Connection type | RJ-45 |
| Modes of protection | Transeverse & common |
| Maximum continuous voltage (DC) | 6V |
| Maximum POE voltage | 80VDC |
| Maximum continuous voltage (AC) | 4V |
| Response time | <5ns |
| Line resistance | 0.1Ω |
| Over stressed fault mode | Mode 3 |
| Maximum load current | 1A |
| Voltage protection level @ 100V/s | 230V |
| Voltage protection level @ 1kV/µs | 350V |
| L-PE Voltage protection level @ 1.5 kA 8/20µs | 500V |
| Enclosed material | Plastic |
| Earthing | Direct |
| Mounting method | Flying |
| Enclosure finish | White |
| Environmental rating | IP20 |
CLIENT RESPONSIBILITIES:
N/A
COMPLETED PROJECTS:
N/A
TERMS OF SALE:
| Lead Time Days | 14 |
|---|---|
| Unit Of Measure | Nos. |
| Height | 24mm |
| Width | 38mm |
| Length | 91mm |
| Country of Manufacture | Sri Lanka |
| Country of Origin | Sri Lanka |
| Brand | Lotus |
| Primary Material | Other |
| Colour | White |
| Warranty Period | N/A |
