ZJBENY 3 Pole 1000V DC Surge Protector Device
SKU
GPBUD-40/3
Special Price
Rs. 6,500.00
Rs. 6,500.00
was
Rs. 7,300.00
Rs. 7,300.00
In stock
Category: Surge Protectors
This Product is Sold By
Minimum Qty. To Order - 5
PRODUCT SUMMARY:

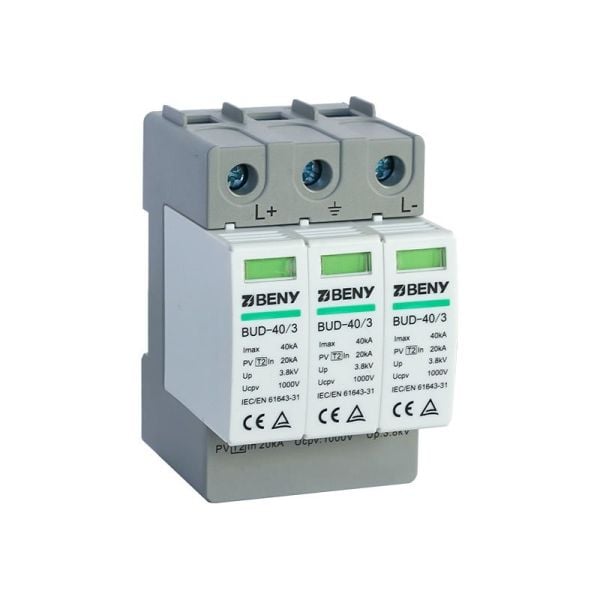

ZJBENY 3 Pole 1000V DC Surge Protector Device (SPD) sold in Sri Lanka by generalpower.lks offers robust protection against voltage surges and transient electrical disturbances. Featuring a base part and three plug-in high-energy MOV protection modules, it ensures reliable defence for electrical systems. Additionally, it includes a thermal disconnect mechanism for fault indication, complemented by a remote signalling contact for monitoring options, providing comprehensive protection and peace of mind for your electrical infrastructure.
GENERAL SPECIFICATIONS:
| Key Details | |
| Model | BUD-40/3 |
| Component Type | DC SPD |
| POLES | 3 |
| Voltage | DC 1000V |
| Current Flow | DC |
| nominal discharge current | 20kA |
| maximum discharge current | 40kA |
| voltage protection level up | 3.8KV |
| degree of protection | IP 20 |
| response time | < 25ns |
| Operating state | Green |
| Fault Indication | Red |
| Colour | Gray |
| CERTIFICATION | TUV/UL |
CLIENT RESPONSIBILITIES:
N/A
COMPLETED PROJECTS:
N/A
TERMS OF SALE:
View the generalpower.lk TERMS OF SALES
| Lead Time Days | 0 |
|---|---|
| Unit Of Measure | Nos. |
| Weight (kg) | 0.400000 |
| Height | 6cm |
| Width | 5cm |
| Length | 9cm |
| Current Type | DC (Direct Current) |
| Voltage | 600V |
| Poles | 3P |
| Country of Manufacture | China |
| Country of Origin | China |
| Brand | ZJBENY |
| Colour | Gray |
| Warranty Period | 3 Years |
